GridLoc Splash-Fill Support
COOLING TOWER PARTS

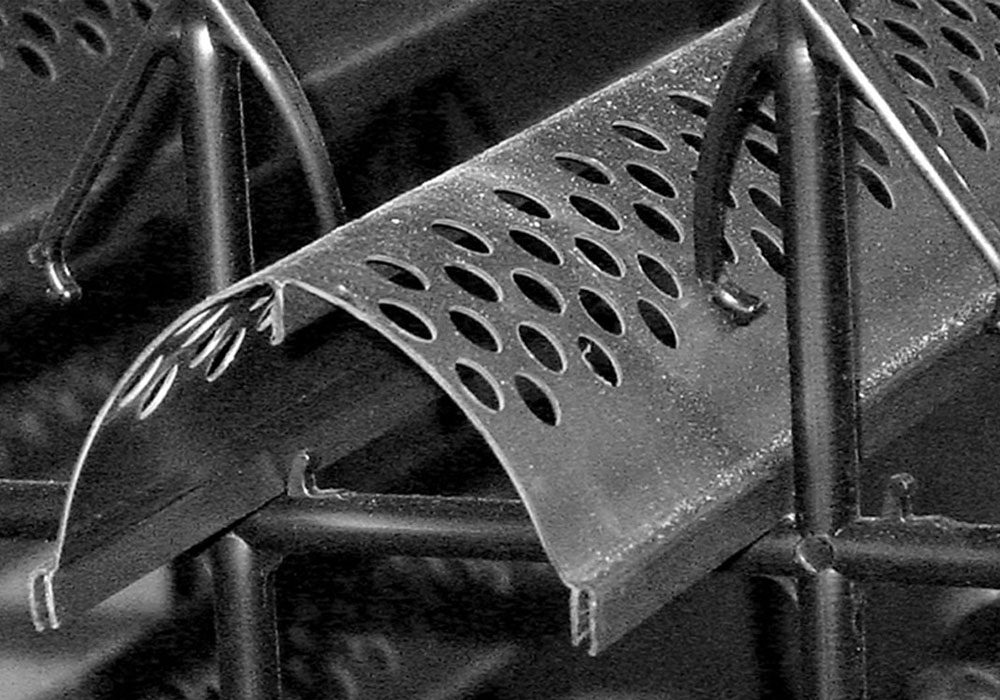

GridLoc splash-fill support is a polypropylene injection molded support for use in crossflow towers. The GridLoc design has a pair of integral, opposing, downward sloping splash bar grips attached to the vertical strands in each window to secure splash bars.
Features
- High performance
- Heavy duty
Details
The GridLoc design has a molded in shelf support at the top of the grid for attaching the grid to the structural members. The grid can be either nailed or screwed to the support member to avoid movement of the grid in the horizontal plane.
The typical GridLoc arrangement will be in 4’ x 6’ bays with bars parallel to air flow. The nominal window opening for bar spacing is 4” horizontal by 8” vertical. The GridLoc splash bar grips are compatible with many Marley splash bar designs as well as commercially available bars. GridLoc will retrofit on historic Marley towers.
Descargas

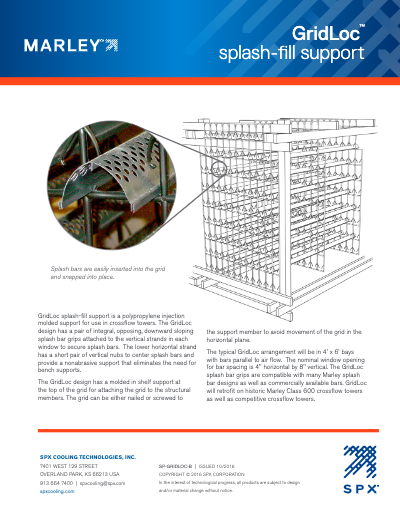

Marley GridLoc Splash-Fill Support
