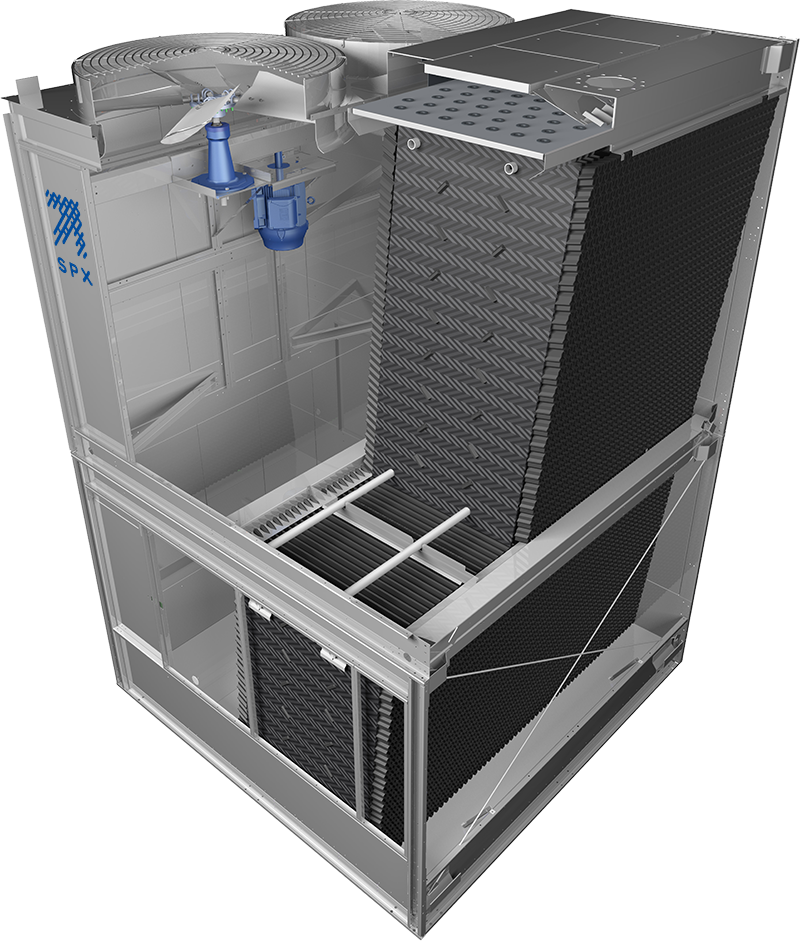

Marley AV

Crossflow Cooling Tower

The factory-assembled, crossflow Marley AV Cooling Tower is designed to minimize total costs and maximize cooling tower performance through low-maintenance operation and quick, easy installation. Its single-flow induced draft design can offer energy savings in a small footprint, and is an excellent crossflow cooling tower replacement for some forced draft counterflow cooling tower installations.

The Marley AV offerings include 3 single-height models and 2 double-height models extending the original product tonnage.



Certifications

CTI Certified, ASHRAE 90.1 compliant, CE / OSHA Compliant



Assembly

Factory Assembled or Knocked Down for Site Assembly



Availability

Worldwide



GPM Range

375-2316 gpm (85-526 m3/hr)



Thermal Capacity

125-772 tons (550-3394 kW)

Details and Features

Z725 heavy galvanised steel. Also available in 304 and 316 series stainless steel.
Marley Spiral Target polypropylene nozzles
Marley MX75 thermoformed PVC film fill with integral eliminators and louvers
Factory-assembled modules, including fan cylinders — makes final field installation hassle-free.
Large access doors — permitting quick visual inspection of cold water basin, internal structure and mechanical equipment.
Single inlet connection for easy and fast installation and lower piping costs.
Heavy duty aluminum alloy fan with adjustable pitch blades.
Specially designed totally enclosed, fan cooled (TEFC) motor, 1.0 service factor, variable torque design, insulated for cooling tower duty.

Talk To An Expert

Downloads

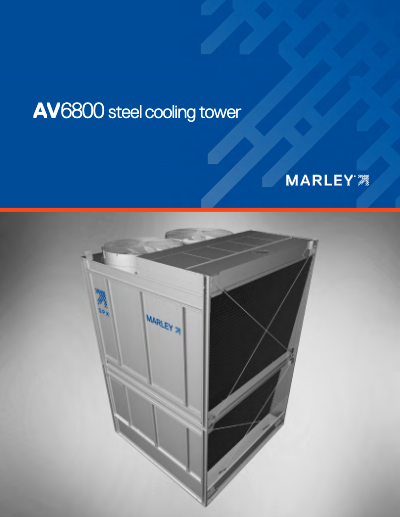

Marley AV Cooling Tower Brochure

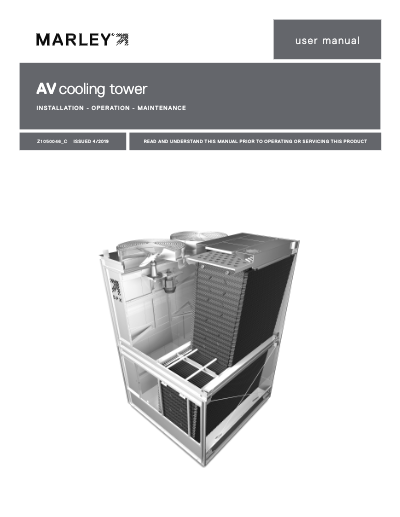

Marley AV Cooling Tower IOM User Manual

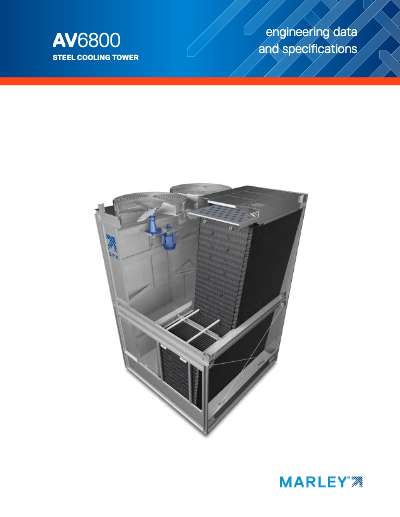

Marley AV Cooling Tower engineering data and specifications
