Marley MD

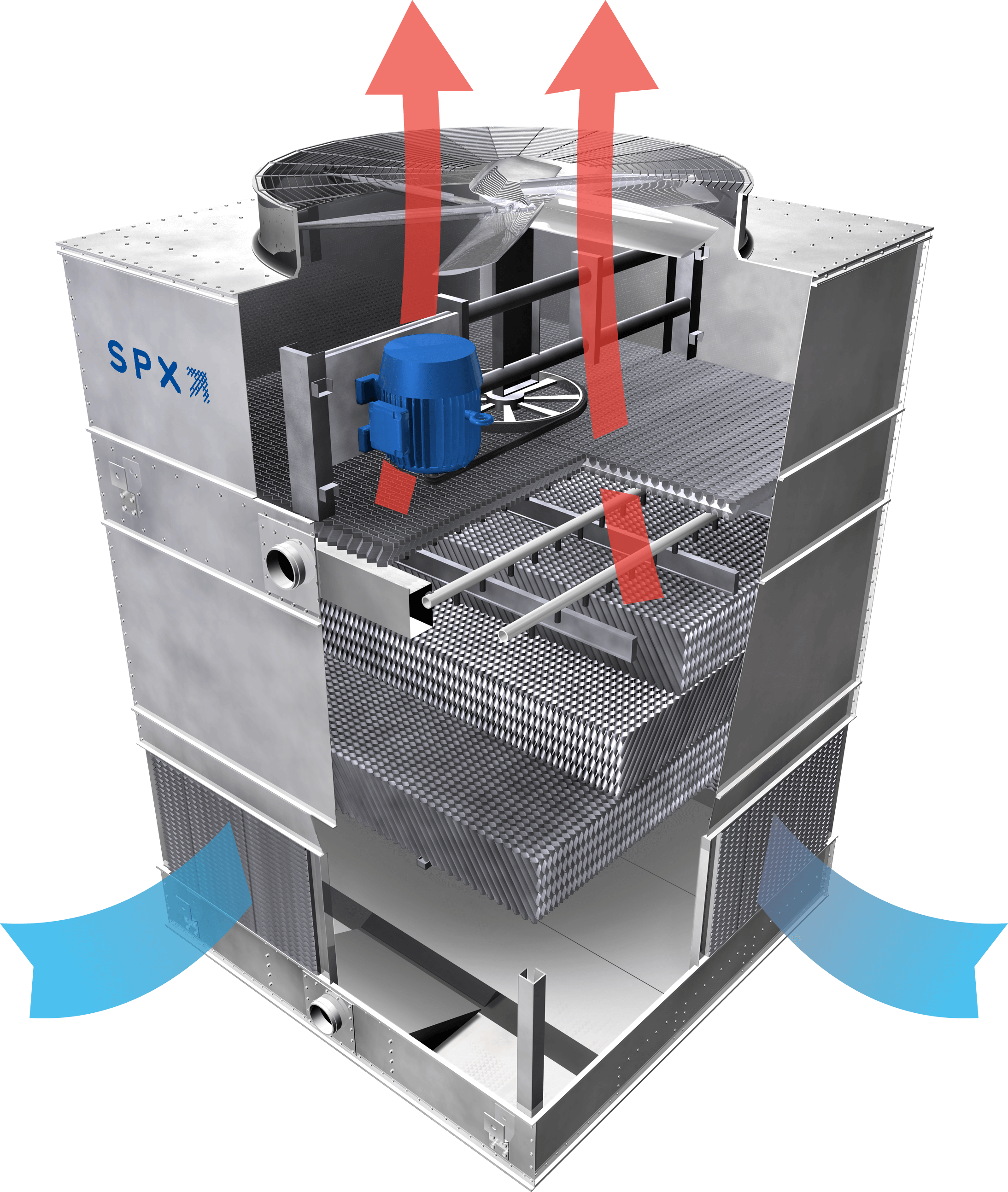

A factory-assembled, counterflow cooling tower, the Marley MD Cooling Tower requires less plan area and offers greater flexibility with site placement than a comparable crossflow cooling tower. With a broad box size selection and more design options, the Marley MD product line is versatile for various applications, even available with anti-fouling film fill for applications with high-solids content process water.

Potential back-to-back configurations for all models provide even more site placement adaptability, and optional mechanical access platforms allow for safer access to the mechanical system, water distribution system, fill and drift eliminators. The Marley MD is a CTI and Eurovent certified, fully rated cooling tower for a wide range of flow and temperature requirements.

Details and Features

Low Sound
The CTI-certified Marley MD cooling tower comes standard with our low-sound fan, suitable for most noise-sensitive situations. Multiple fan and attenuation options are available to meet more stringent sound requirements.

Independently Validated Sound Data
Marley towers are the only package cooling towers tested per CTI ATC-128 test code by third-party CTI-licensed test agents and certified acoustical engineers. MD sound levels are independently verified to meet published sound levels.

Superior Water Management
To address “splash-out” issues typically found in other counterflow cooling tower designs, Marley introduced an industry-first triple-pass inlet louver that conserves water, improves winter operation and limits potential for algae growth.

FM Approved
For applications of two or more cells, the MD tower conforms to the FM Approval Standard for cooling towers, Class Number 4930.
